HUAWEI AP4030DN&AP4130DN Fit/fat Wireless Access Point Router

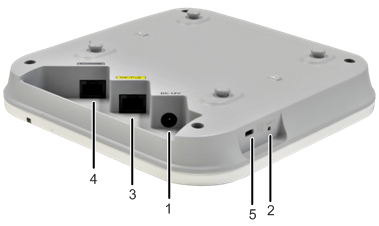

Interface Description





1. Input port: 12V DC power supply

2. Default button: Hold button for more than 3 seconds to restore factory defaults

3. GE/PoE port: 10M/100M/1,000M port connects to wired Ethernet. The port can connect to a PoE power supply to provide power for APs

4. Console port: Connects to the maintenance terminal for AP configuration and management



5. Lock port: Protects against theft



Specifications



Item

Description

Technical Specifications

Dimensions (H x W x D)

1.6 in. x 7.1 in. x 7.1 in. (39.5 mm x 180 mm x 180 mm)

Weight

0.9 lb. (0.4 kg)

System memory

· 256 MB DDR2

· 32 MB Flash

Power Specifications

Power input

· DC 12V ± 10%

· PoE power: -48V DC (in compliance with IEEE 802.3af/at)

Maximum power consumption

10.2W

Note: Actual maximum power consumption depends on local laws and regulations

Environment Specifications

Operating temperature

-10°C to 50°C

-60m to 5,000m

Storage temperature

-40°F to 158°F (-40°C to 70°C)

Operating humidity

5% to 95% (non-condensing)

Ingress Protection Rating

IP41

Atmospheric pressure

15.7 inHg to 31.3 inHg (53 kPa to 106 kPa)



Item

Description

Antenna Type

Built-in

Antenna Gain

· 2.4G: 4 dBi

· 5G: 6 dBi

Maximum Number of Users

· FIT AP: ≤ 256

· FAT AP: ≤ 64

Maximum Transmit Power for each Radio Frequency

· 2.4 GHz: 20 dBm

· 5 GHz: 20 dBm

Note: The 2.4 GHz radio does not support 40M bandwidth in U.S. FCC regions. The actual transmit power depends on local laws and regulations. You can adjust transmit power from the maximum to 1 dBm in 1 dB steps

Maximum Number of Non-overlapping Channels

2.4 GHz

802.11b/g
-20 MHz: 3

802.11n

-20 MHz: 3
-40 MHz: 1

5 GHz

802.11a
-20 MHz: 13

802.11n
-20 MHz: 13
-40 MHz: 6

802.11ac
-20 MHz: 13
-40 MHz: 6

-40 MHz: 3

Note: This table uses the number of non-overlapping channels supported by China as an example. The number of non-overlapping channels varies in different countries. For details, see the Country Code and Channels compliance status

Note: If the AP is delivered to the U.S., pay attention to the following channel and frequency band usage:

1. AP country code is fixed

2. Use the 5.15 GHz to 5.25 GHz frequency band indoors only

3. High power radars operating at 5.25 GHz to 5.35 GHz, 5.47 GHz to 5.6 GHz, and 5.65 GHz to 5.725 GHz can interfere with or damage APs on the same frequency

4. APs do not operate at 5.6 GHz to 5.65 GHz or their overlapping channels

Channel Rates Supported

· 802.11b: 1, 2, 5.5, and 11 Mbit/s

· 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s

· 802.11n: 6.5 Mbit/s to 300 Mbit/s

· 802.11ac: 6.5 Mbit/s to 867 Mbit/s



Fit AP network (AP mode)

Fit AP network (WDS mode: Point-to-point)



Fit AP network (WDS mode: Point-to-multipoint)

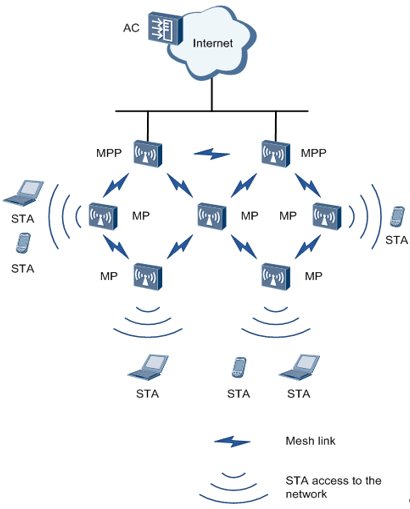

Fit AP mesh network

Fat AP network
