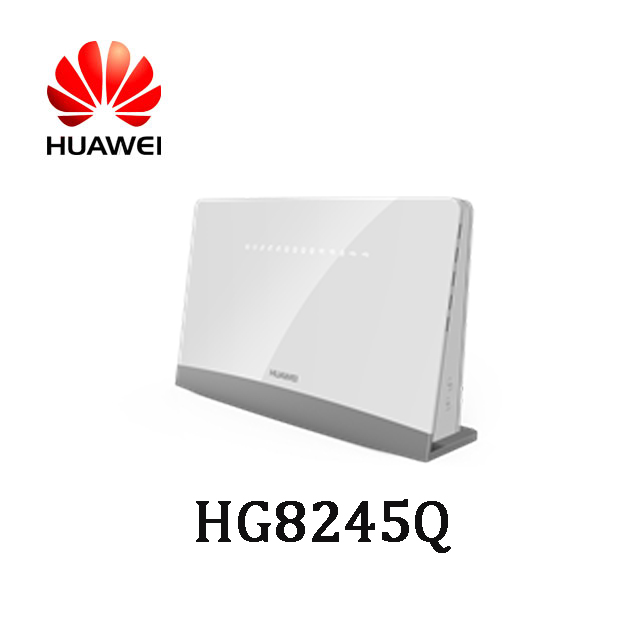

Huawei GPON/10G PON ONT HG8245H/HG8247H/HG8245Q/HN8245Q

The EchoLife HN8245Q is an indoor optical network terminal (ONT) in Huawei 10G PON FTTH solution. By using the 10G GPON technology, ultra-broadband access is provided for home and SOHO users. The HN8245Q provides four GE Ethernet ports,two POTS ports,two USB ports and 2.4G & 5G WiFi ports. The HN8245Q features high-performance service forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HN8245Q provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.

Image Details







Specification



Specifications	HG8010H	HG8040H	HG8110H	HG8240H	HG8242H	HG8045Q
Dimensions  (H x W x D)	90 mm x 82 mm x 27 mm	176 mm x 138.5 mm x 28 mm	134 mm x 115 mm x 27 mm	176 mm x 138.5 mm x 28 mm	220 mm x 160 mm x 32 mm	230 mm x 190 mm x 30 mm
Network-side Ports	GPON	GPON	GPON	GPON	GPON	GPON
User-side Ports	1 GE	4 GE	1 GE + 1 POTS	4 GE + 2 POTS	4 GE + 2 POTS + 1 CATV	4 GE + 1 USB + 2.4G and 5G Wi-Fi
Specifications	HG8245H	HG8245Q	HG8247H	HN8055Q	HN8245Q
Dimensions  (H x W x D)	176 mm x 138.5 mm x 28 mm	285 mm x 174 mm x 70 mm	220 mm x 160 mm x 32 mm	238 mm x 190 mm x 26 mm	238 mm x 190 mm x 26 mm
Network-side Ports	GPON	GPON	GPON	XG-PON	XG-PON
User-side Ports	4 GE + 2 POTS + 1 USB + Wi-Fi	4 GE + 2 POTS + 2 USB + 2.4G and 5G Wi-Fi	4 GE + 2 POTS + 1 USB + Wi-Fi + 1 CATV	4 GE + 1 x 10 GE + 2.4G and 5G Wi-Fi + 2 USB	4 GE + 2 POTS + 2.4G and 5G Wi-Fi + 2 USB
