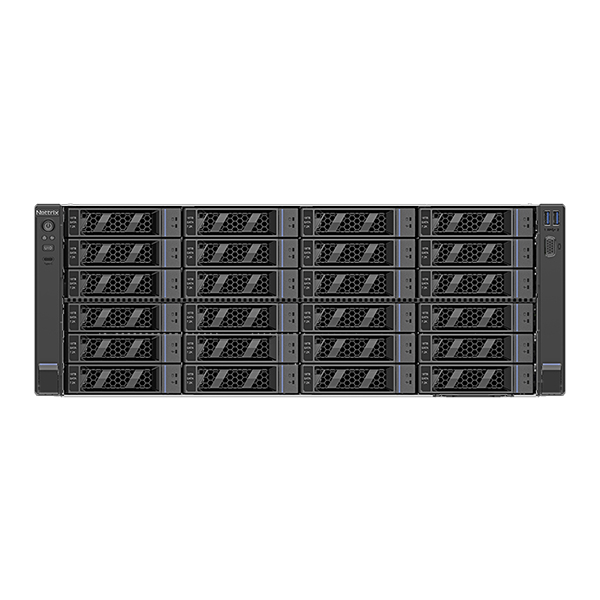

Nettrix R640 G50 is a high-end 4U Universal rack-mounted high-density storage server based on the 4th generation Intel® Xeon® Scalable processor. It has massive storage space, excellent computing performance and diverse IO expansion capabilities, making it easy to handle The demanding application requirements of large capacity, strong performance, scalability, and high reliability ensure the stable operation of key businesses.
Consult
High-density storage of massive data
It can provide 40 3.5-inch hard drives and 4 2.5-inch hard drives in 4U space. It is compatible with NVMe. The storage medium supports large-capacity SATA, providing ultra-large-capacity local storage expansion capabilities.
Flexible configuration and intelligent management
Flexible selection of storage configuration solutions, select the number of storage controllers according to business needs, and achieve the optimal choice of price and performance;
Embracing the business demands of green energy saving, a new high-efficiency energy-saving speed regulation design is added, so that the heat dissipation of the whole machine can be based on the ambient temperature and the actual load condition, saving the power consumption of the whole machine without affecting the load performance, and achieving the effect of green energy saving.
Balanced performance and high cost performance
Supports 2 fourth-generation Intel® Xeon® scalable processors, with up to 60 cores per CPU, providing strong computing performance;
Supports 32 DDR5 4800MHz memory frequencies, increasing memory bandwidth by 50%;
Flexibly expand OCP network cards and PCIe plug-in cards, configure network resources on demand, fully support the PCIe 5.0 protocol, and increase the transmission rate by 100%.
| Form | 4U rack server |
| Processor | Supports 2 fourth-generation Intel® Xeon® Scalable processors, up to 350W |
| Memory | 32 DDR5 memory slots, up to 4800MHz, supports memory ECC, memory mirroring, memory hot backup and other protection modes. Supports up to 16 Intel® Optane® persistent memory PMem 300 series |
| Storage Controller | Supports pass-through, RAID0, 1, 10, 5, 50, 6, 60 and other storage solutions. When configuring a RAID controller, it can support Cache supercapacitor protection and provide functions such as RAID level migration, disk roaming, self-diagnosis, and Web remote settings. , supports RAID card secure boot |
| Local Storage | Front: supports up to 24 3.5-inch hard drives, compatible with NVMe hard drives, supports hot-swappable rear: supports up to 16 3.5-inch hard drives and 4 2.5-inch hard drives Internal: up to 2 SATA/PCIe M.2, 1 board Load eMMC chip |
| Network Interface | Network card: 1 OCP 3.0, with NCSI function OCP 3.0 optional 2*1GE, 2*10GE, 2*25GE, 2*100GE, 2*200GE and other interfaces |
| Pcie Extension | Up to 10 PCIe 5.0 expansion slots can be configured, including 1 OCP slot |
| Other Interfaces | Rear of the chassis: 1 RJ45 management interface, 2 USB 3.0 interfaces, 1 VGA interface Front of the chassis: 2 USB 3.0+1 VGA Inside the chassis: 1 USB 3.0 |
| Power Supply | Optional 800W/1300W/2000W/2200W CRPS high-efficiency platinum hot-swappable power supply, supports 1+1 redundancy, voltage range 100-240Vac (please refer to the power input value on the host nameplate label) |
| Fan Module | 4 hot-swappable fan modules |
| Management Functions | Integrated BMC chip, providing a 1Gbps RJ45 management port to the outside world, supporting standard interfaces such as Redfish, SNMP, IPMI2.0, etc.; a remote management interface based on iKVM/HTML5, providing comprehensive fault diagnosis, automated operation and maintenance, and remote management functions; support BMC dual flash redundant backup |
| Operating System | Microsoft Windows Server, RedHat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, VMware EXSi, etc. |
| Operating Temperature | 5 ℃ ~ 45 ℃ |
| Chassis Size | 175.5mm (height) ×446mm (width) ×798mm (depth) |
| Net Weight Of The Whole Machine | Maximum 58 KG (subject to actual configuration) |
